Grin Front All-Axle Hub, Fast Wind

Custom Build of Fast Wind (12 rpm/V) All-Axle Hub Motor
Full Product Information Page

From €632.00

To €822.53

In stock

SKU
BUNDLE-AA_Fst
Customize Grin Front All-Axle Hub, Fast Wind
V3 Front All-Axle, Fst Black

* Required Fields

Your Customization

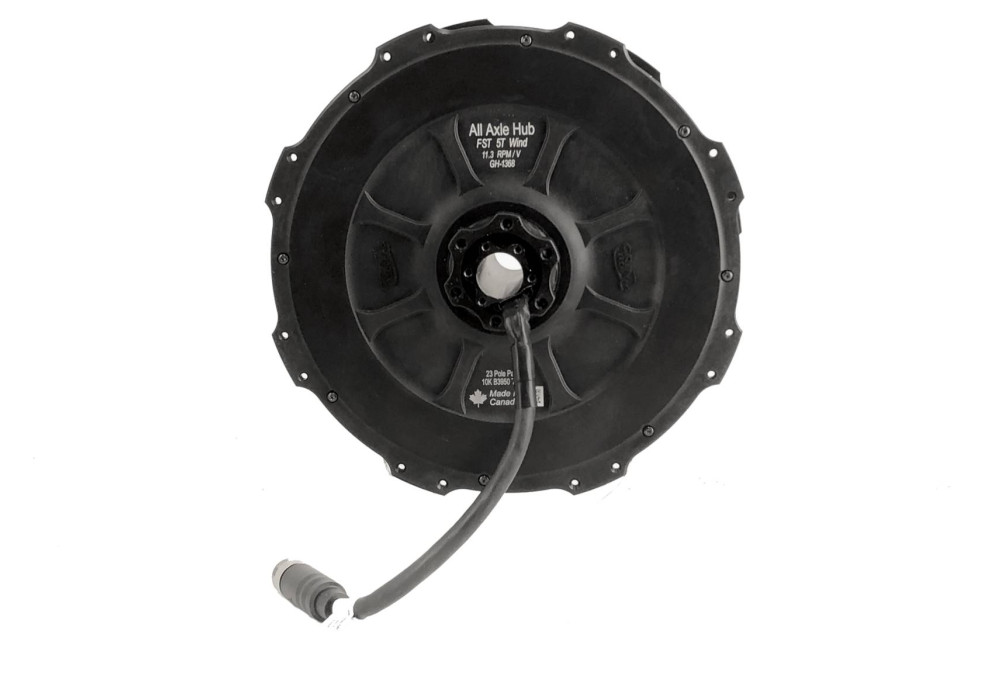

Custom Build of Grin All-Axle Hub Motor
Grin Front All-Axle Hub, Fast Wind

In stock

€632.00

Summary

    Custom build of a fast wind Grin All-Axle hub motor with lacing options into your choice of rim. This 12 rpm/V motor winding is typically used for 16" and 20" wheel builds, especially those running with lower voltage battery packs like 36".

    The latest V3 motor model has a stronger axle with a 16mm bore which provides more room for cable clearance and should be selected by default.

    The V2 motor with a 20mm bore is still available for people with applications that require use with 20mm thru-axle suspension forks.



    V3 Front All-Axle, Fst Black
    Actual Weight (kg)
    4.05
    Motor Power Range (Watts)
    500-1000
    Motor KV (RPM / V)
    12.0
    Phase Resistance (Ohm)
    0.10
    Disk Brake Compatible
    Yes
    Connector(s)
    L1019
    Thermistor Style
    10K NTC, Beta ~3450
    Axle Length (O.L.D.)
    100
    Spoke Holes
    32 Hole
    Motor Type
    Direct Drive
    Flange Spoke Diameter (mm)
    214
    Magnetic Pole Pairs (Phaserunner)
    23
    Hysteresis Losses (N-m)
    0.6
    Eddie Losses (N-m / rad/sec)
    0.005
    Rim26_JUMBO_32h
    Actual Weight (kg)
    0.53
    Rim Width (mm)
    30
    Spoke Holes
    32 Hole
    Nominal Rim Size
    26" (ISO 559)
    Rim ERD
    535
    Rim Brake Compatible
    no
    Valve Type
    Schrader
    Rim20_JUMBO_32h
    Actual Weight (kg)
    0.53
    Rim Width (mm)
    30
    Spoke Holes
    32 Hole
    Nominal Rim Size
    20" (ISO 406)
    Rim ERD
    382
    Rim Brake Compatible
    no
    Valve Type
    Schrader
    Rim24_JUMBO_32h
    Actual Weight (kg)
    0.53
    Rim Width (mm)
    30
    Spoke Holes
    32 Hole
    Nominal Rim Size
    24" (ISO 507)
    Rim ERD
    484
    Rim Brake Compatible
    no
    Valve Type
    Schrader
    Rim27.5_EROCKY_32h
    Actual Weight (kg)
    0.53
    Rim Width (mm)
    28.5
    Spoke Holes
    32 Hole
    Nominal Rim Size
    650B (ISO 584)
    Rim ERD
    561
    Rim Brake Compatible
    no
    Valve Type
    Schrader
    Rim28_EROCKY_32h
    Actual Weight (kg)
    0.53
    Rim Width (mm)
    28.5
    Spoke Holes
    32 Hole
    Nominal Rim Size
    700C (ISO 622)
    Rim ERD
    599
    Rim Brake Compatible
    no
    Valve Type
    Schrader
    More Information
